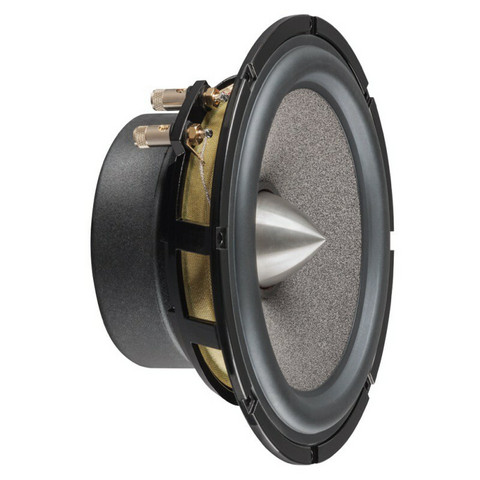

Brax Matrix ML6P
Vaiheplugillinen 6,5" high end mid-/bass woofer
Since years, the BRAX MATRIX speaker series is synonymous for unrivaled sound and quality characteristics.
Thus, the focus of the further development of the 6.5″ / 165 mm woofers was on state-of-the-art technology and sophisticated materials to meet the requirements of the brand BRAX - pure and precise sound reproduction.
Similar to the new loudspeakers ML10 and ML3 the unique ″MicroSphere″ coating of the ML6P cone also assures outstanding precision in sound reproduction. This patented technology embeds ceramic hollow spheres with a diameter of solely 75 µm in a polyamide layer that is applied to the cone. The special coating guarantees a perfect inner damping without adversely affecting the weight of the cone. This innovative coating increases the stiffness of the hand-scooped cone and lets the woofer play even more dynamically and accentuated.
In terms of design and technology the BRAX philosophy is unexceptionally continued: The gentle, precious appearance reveals smart details like the solid stainless steel phase plug for an improved off-axis response and further reduced compression effects, the perfectly linear magnet structure for lowest possible distortion, the multiple ventilated voice-coil for high power handling as well as the rigid and aerodynamically efficient diecast basket. Used as a provider of low-frequencies the ML6P finalizes audiophile sound concepts that are entirely designed for authentic musical enjoyment.
As with every MATRIX product, each speaker set receives its unique serial number, which is recorded in our service database. The exclusive wooden box packaging emphasizes once again the high-end character of BRAX. A stainless steel mounting ring set including grille (MR6) is optionally available. The solid stainless steel ring can either be used as mounting ring or grille support ring depending on mounting position.
LISÄTIEDOT
Tuotemallitarkenne | MATRIX |
Technical data | 6,5″ midbass Power RMS / max. 120 W / 170 W Impedance 4 Ω DC resistance 3.6 Ω Voice coil diameter 37 mm Voice coil winding height 14 mm Max. linear excursion +/- 4.0 mm Cone area 137 cm² Moving mass 14.8 g Mechanical resistance 0.76 kg/s Resonance frequency 50 Hz Mechanical Q factor 6.20 Electrical Q factor 0.52 Total Q factor 0.48 Compliance 670 μm/N Equivalent air volume 17.6 L Force factor 5.7 Tm Efficiency 1 W / 1 m 88.5 dB |
