AudioControl DM-608
8-kanavainen digitaalinen signaaliprosessori

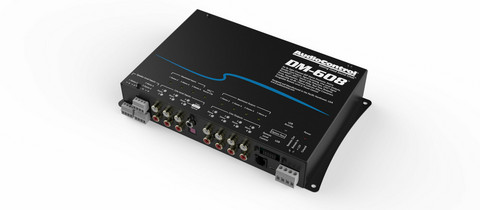

AudioControl DM-608 - PREMIUM 6 INPUT 8 OUTPUT DSP MATRIX PROCESSOR
The powerful DM-608 processor allows users to truly optimize the performance of their audio system, regardless of whether they are using a factory or aftermarket source, and to truly achieve the goal of “Making Good Sound Great”.These highly versatile Digital Signal processors are equipped with key features, such as active speaker level inputs, line-level and digital audio inputs, providing up to 8 channels of output. AudioControl’s “smart user” interface contains the power of AudioControl processing through a flexible PC interface packed full of features in a simple lay out. Configure signal summing, 30 bands of equalization, signal time-alignment, input delay and phase correction, plus AudioControl proprietary features like AccuBASS®, GTOTM Signal Sense, and MILCTM as well as integrated input and output RTA’s.The built in Option Port on the DM-608 is the future of car audio and will allow hi-res streaming directly into the DSP. It also opens up future proprietary connections for additional inputs, controllers and interface solutions.
FEATURES
- Input and Output RTA for precise and informed tuning
- GTOTM Signal Sensing
- MILCTM Clip Detection
- AccuBASS®
- Signal Summing
- Signal Delay
- 12 and 24 dB/octave crossovers
- 30 band equalizer
- Optional ACR-3 remote for preset recall and level control
- DM Smart DSP app available in downloads for Mac/PC or…
- App Store
- Google Play Store
SPECIFICATIONS
- INPUTS
- Preamp Input Channels: 6
- Digital Inputs: 1 x Toslink and Coax
- Input Impedance Preamp / Speaker-level: 20 kΩ / 7 kΩ
- OUTPUTS
- Preamp Outputs Channels: 8
- Maximum Output Level: 10 Vrms
- Output Impedance: 150 Ω
- PERFORMANCE
- Total Harmonic Distortion: 0.01%
- Frequency Response: 20 Hz to 24 kHz
- Crossover Frequency: variable
- Crossover Type: 12 and 24 dB/octave Linkwitz-Riley
- CONTROL
- 12 VDC Remote In
- 12 VDC Remote Out (always active when unit is on)
- GENERAL
- Power Supply: High Headroom PWM Switching
- Current Draw: 1A
- Recommended Fuse Rating: 3A
- WEIGHTS & DIMENSIONS
- Dimensions: 9.4”W x 5.7”D x 1.6”H
- Weight: 2.4lbs (1.1kg)
IN THE BOX: DM-608, Power and Speaker Connectors, Manual, Warranty
