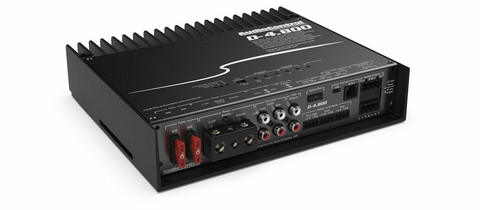

AudioControl D-4.800
4-kanavainen DSP-vahvistin, 4 x 125W 4Ω RMS
AudioControl D-4.800 - HIGH-POWER 4 CHANNEL DSP MATRIX AMPLIFIER WITH ACCUBASS®
AudioControl has paired our award winning amplifier technology with our powerful Matrix DSP into the D-4.800. This single-unit solution provides unprecedented power and tuning flexibility when you require audio perfection from your factory or aftermarket sound system.The D-4.800 features active speaker level inputs, line-level inputs and outputs plus, using AudioControl’s DM Smart DSP app gives you complete control over all features including 30 bands of equalization, signal delay, input delay, polarity and AudioControl proprietary features like AccuBASS®, GTOTM Signal Sense, and MILCTM plus integrated input and output RTA’s.Perfect for OEM integration and aftermarket builds, the D-4.800 packs power and intelligent flexibility into one beautiful cast aluminum chassis.
FEATURES
- Built-in DSP
- Configurable as 4/3/2 channel amplifier
- 4 x 200 watts @ 2 ohms
- 4 x 125 watts @ 4 ohms
- 400 watts @ 4 ohms bridged
- AccuBASS® Processing
- MILCTM Maximum Input Level Control (Patent Pending)
- GTOTM Signal Sense
- Active speaker-level inputs (6 channels) for OEM integration
- 4 preamp inputs
- 2 assignable preamp outputs
- Solid One-Piece Aluminum Chassis
- Input and Output RTA for precise and informed tuning
- Input and Output Delay
- 12 and 24 dB/octave Linkwitz-Riley crossovers
- 30 band equalizer
- DM Smart DSP app available in downloads for Mac/PC or…
- App Store
- Google Play Store
SPECIFICATIONS
- INPUTS
- Preamp Inputs: 4 balanced
- Preamp Input Voltage Range: 250 mV – 8 Vrms
- Speaker Level Inputs: 6
- Speaker Level Input Voltage Range: 3 V – 40 Vrms
- OUTPUTS
- Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 125 W x 4 RMS
- 2 Ω – 200 W x 4 RMS
- Bridged 4 Ω – 400 W RMS
- Preamp Outputs: 2
- Maximum Preamp Output: 8.5 V RMS
- Rated Continuous (RMS) Power at 14.4V:
- PERFORMANCE
- Frequency Response: 20 Hz – 24 kHz
- Signal to Noise: 102 dBA, Ref 200 W @ 2 Ohm
- THD+N: < 0.1%
- Power / Ground Wire Gauge: 8 to 3 AWG wire
- Fuse Rating: 2 x 40 A
- WEIGHTS & DIMENSIONS
- Dimensions: 9.0″W x 8.0″D x 2.1″H
- Weight: 5.0 lbs. (2.3kg)
IN THE BOX: D-4.800, Speaker Connectors, Fuses, Manual, Warranty
